F650GS 01-04 (R13) | Pedals

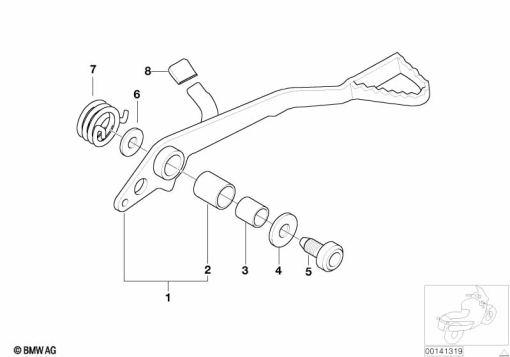

BRAKE PEDAL
Diagram #35_0264 | 8 parts | 1 available in shop
100%
Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35 21 7 651 457 | BRAKE PEDAL | 1 | |
| 2 | 35 21 1 450 231 | BUSHING | 1 | |
| 3 | 35 21 2 345 837 | BUSHING | 1 | |
| 4 | 07 11 9 903 292 | WASHER - 8,4-140 SW | 1 | |
| 5 | 35 21 7 654 249 | OVAL-HEAD MACHINE SCREW, BLACK - M8X55 | 1 | |
| 6 | 35 21 2 338 163 | WASHER - 16,4X32X1,0 | 1 | |
| 7 | 35 21 2 311 670 | RETAINER SPRING | 1 | |
| 8 | 35 21 7 663 483 | SHRINKING HOSE - LG=20MM | 1 |
