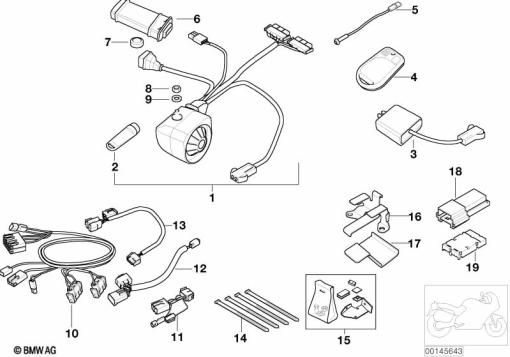

Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 65 75 2 337 477 | CONTROL UNIT | - | |
| 2 | 65 75 2 337 406 | CODING PLUG | - | |
| 3 | 65 75 2 337 405 | MOTION SENSOR | - | |
| 4 | 65 75 1 696 869 | REMOTE CONTROL - 433MHZ | - | |
| 5 | 65 75 2 337 403 | LED BASIC UNIT, THEFT ALARM | - | |
| 6 | 65 75 2 337 408 | RECEIVER, BASIC UNIT, THEFT ALARM - DWA | - | |
| 7 | 65 75 2 337 504 | BATTERY - 3V | - | |
| 8 | 07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SI | - | |
| 9 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | - | |
| 10 | 71 60 7 654 341 | MAIN WIRING HARNESS - DWA | - | |
| 11 | 71 60 7 654 343 | START INTERRUPT CABLE | - | |
| 12 | 71 60 7 654 344 | ALARM LOOP - FÜR BLINKER | - | |
| 13 | 71 60 7 654 342 | VOLTAGE SUPPLY CABLE | - | |
| 14 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | - | |
| 15 | 71 60 7 653 868 | SET: FASTENING SET | - | |
| 16 | 71 60 7 653 871 | BRACKET | - | |
| 17 | 71 60 7 660 856 | SET: SUPPORT PLATE | - |
