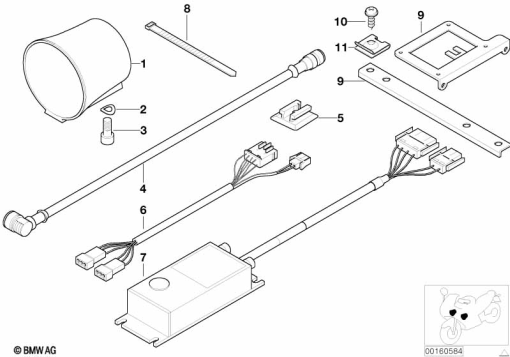

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 65 13 7 695 092 | PNEUMATIC LOUDSPEAKER | - | |
| 2 | 07 11 9 932 098 | WAVE WASHER - B5 | - | |
| 3 | 07 11 9 904 303 | FILLISTER-HEAD SCREW - M5X10-8.8-ZNNIV | - | |
| 4 | 61 12 2 316 925 | WIRE TO HORN SPEAKER | - | |
| 5 | 61 13 1 378 908 | BRACKET, PLUG CONNECTION BLACK | - | |
61 13 8 365 536 | BRACKET, PLUG CONNECTION GRAYAlternative for position 5 | - | ||
| 6 | 61 12 2 316 948 | INTERMEDIATE WIRE, SIRENS | - | |
61 12 2 316 926 | INTERMEDIATE WIRE, ACOUSTIC SIGNALAlternative for position 6 | - | ||
| 7 | 61 35 2 316 947 | CONTROL UNIT FOR ANTI-THEFT HORNS | - | |
61 35 2 316 923 | CTRL UNIT F AUDIBLE SIGNALLING SYSTEMAlternative for position 7 | - | ||
| 8 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | - | |
| 9 | 65 61 7 664 480 | BRACKET, CONTROL UNIT | - |
