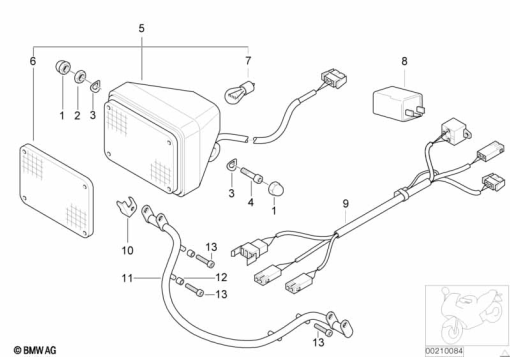

Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 51 1 234 785 | PROTECTION CAP - M8 | - | |
| 2 | 07 11 9 904 948 | HEX NUT - M8-05-ZNNIV SI | - | |
| 3 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | - | |
| 4 | 07 11 9 902 984 | FILLISTER-HEAD SCREW - M8X40-8.8-ZNS3 | - | |
| 5 | 63 17 2 316 863 | SIGNALLING LIGHT,BLUE | - | |
63 17 2 316 861 | SIGNALLING LIGHT,REDAlternative for position 5 | - | ||
| 6 | 63 17 2 317 374 | LENS BLUE | - | |
63 17 2 317 373 | LENS REDAlternative for position 6 | - | ||
| 7 | 63 17 2 317 379 | BULB - 12V35W | - | |
| 8 | 61 31 1 244 392 | HAZARD WARNING RELAY | - | |
| 9 | 61 12 7 667 059 | WIRING HARNESS F SIGNALLING LIGHT | - | |
| 10 | 46 70 7 664 425 | BRACKET LEFT | - | |
46 70 7 664 426 | BRACKET RIGHTAlternative for position 10 | - | ||
| 11 | 46 70 7 686 773 | MARKER LIGHT BRACKET | - | |
| 12 | 46 70 7 664 424 | BUSH | - | |
| 13 | 07 11 9 906 726 | FILLISTER-HEAD SCREW - M5X40-8.8-ZNNIV | - |
