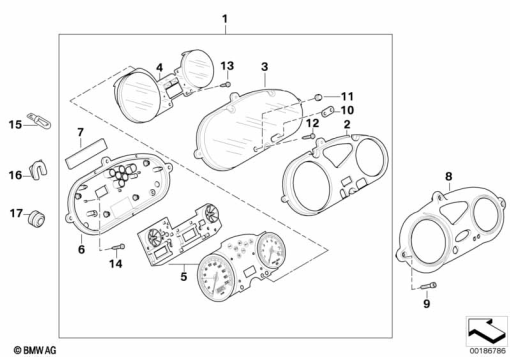

Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 62 11 7 669 867 | INSTR. CLUST. NOT INCLUD. WIRING HARNESS - MPH | - | |
| 2 | 62 11 7 650 272 | COVERING BLACK | - | |
| 3 | 62 11 7 650 271 | COVER | - | |
| 4 | 62 11 7 654 716 | OPTICAL CONDUCTOR | - | |
| 5 | 62 11 7 650 278 | SPEEDOMETER/REV.COUNT. AND PRNTD CIRCUIT - MPH | - | |
| 6 | 62 11 7 650 273 | HOUSING LOWER PART | - | |
| 7 | 46 63 1 453 980 | SEALING STRIP - 365X8X2MM | - | |
| 8 | 62 21 2 346 567 | COVERING SILVER | - | |
| 9 | 07 12 9 902 610 | INNER HEX BOLT - M4X30-A2-70 | - | |
| 10 | 62 11 7 650 274 | ADJUSTING KNOB | - | |
| 11 | 62 11 7 650 275 | TRIP-DISTANCE DISPLAY RESET | - | |
| 12 | 07 12 9 903 298 | SCREW FOR THERMOPLASTIC PLASTICS - N-TS-4X16-ZNS | - | |
| 13 | 62 11 7 654 718 | FILLISTER HEAD SELF-TAPPING SCREW - N-TS2,2X6-ZN SW | - | |
| 14 | 07 12 9 903 299 | SCREW FOR THERMOPLASTIC PLASTICS - N-TS3X16-ZNS | - | |
| 15 | 63 21 7 167 000 | BULB - 12V 1,2W | - | |
| 16 | 07 12 9 909 733 | SECURING CLIP - ZNNIV SW | - | |
| 17 | 62 21 7 670 749 | RUBBER GROMMET - 8X18X12MM | - |
