F650GS 01-04 (R13) | Fuel Preparation

CONTROL UNIT BMS-C / E

Diagram #13_1119 | 4 parts

100%

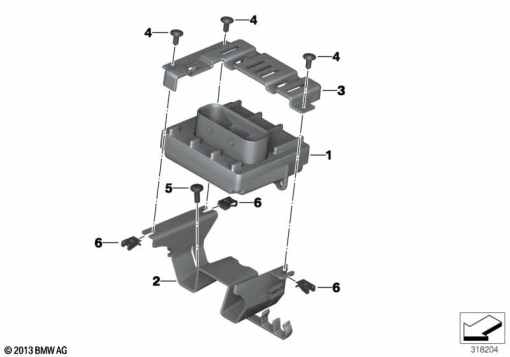

F650GS 01-04 (R13) CONTROL UNIT BMS-C / E exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
2
13 61 2 343 575
BRACKET, CONTROL UNIT1
4
46 63 2 325 997
FLANGED CAP SCREW - M5X121
5
07 12 9 903 161
SCREW FOR THERMOPLASTIC PLASTICS - 5X161
6
46 63 7 651 465
PLUG-IN NUT - M51
