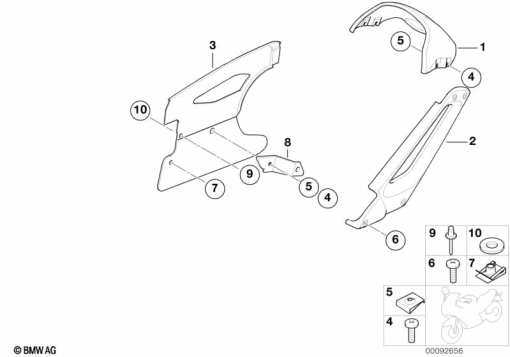

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 62 2 346 386 | WHEEL COVER - BLACK | - | |
| 2 | 46 62 7 672 364 | BRACKET, WHEEL COVER, BOTTOM LEFT - BLACK | - | |
| 3 | 46 62 7 665 461 | BRACKET, WHEEL COVER, BOTTOM RIGHT - BEHÖRDE | - | |
| 4 | 06 32 7 657 949 | FILLISTER HEAD SCREW - M5X16-A2-80-MK | - | |
| 5 | 46 63 7 651 465 | PLUG-IN NUT - M5 | - | |
| 6 | 46 63 7 659 459 | OVAL-HEAD SCREW WITH ANTI-ROTATION LOCK - M6X16 | - | |
| 7 | 51 12 7 070 202 | C-CLIP NUT - M6-ZNS3 | - | |
| 8 | 46 62 7 664 367 | BRACKET FOR CHAIN GUARD - BEHÖRDE | - | |
| 9 | 54 12 8 144 789 | BLIND RIVET - BLACK | - | |
| 10 | 07 11 9 904 924 | WASHER - 9X4,3X0,8-A2 | - |
