F650GS 01-04 (R13) | Frame, Fairing, Cases
SUPPORTING PLATE AND COVER F AUTHORITIES

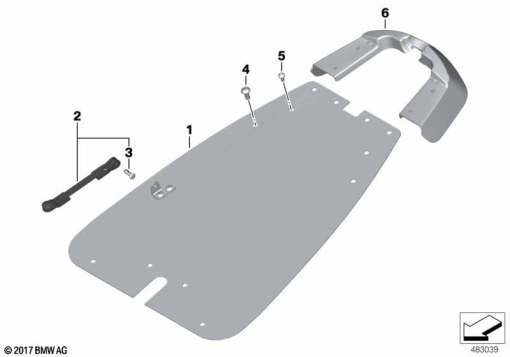

Diagram #46_1998 | 6 parts
100%
Parts List (6)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 65 61 7 664 470 | CARRIER PLATE | 1 | |
| 2 | 46 54 2 300 441 | HOLDING STRAP - L=180MM | 1 | |
| 3 | 51 16 1 828 956 | 0.01 | 1 | |
| 4 | 46 63 2 325 997 | FLANGED CAP SCREW - M5X12 | 1 | |
| 5 | 07 12 9 903 266 | SCREW - NS-TS5X16-ZNFE | 1 | |
| 6 | 46 63 7 667 066 | COVER | 1 |
