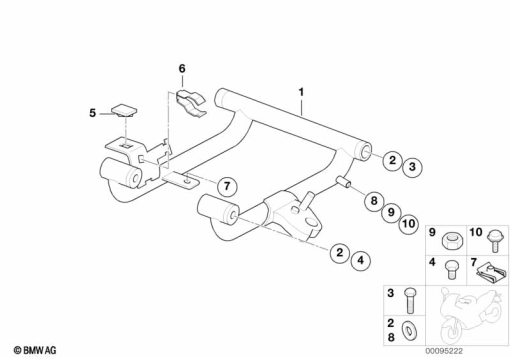

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 53 7 669 900 | FRAME LOWER PART | - | |
| 2 | 07 14 9 180 923 | WASHER - 8,4X18X2MM | - | |
46 71 2 311 547 | SHIM - 1,00MMAlternative for position 2 | - | ||
46 71 2 312 160 | SHIM - 0,50MMAlternative for position 2 | - | ||
| 3 | 07 11 9 906 857 | HEX BOLT - M8X220 | - | |
| 4 | 07 11 9 906 728 | HEX BOLT - M8X110-8.8 | - | |
| 5 | 61 13 8 365 536 | BRACKET, PLUG CONNECTION GRAY | - | |
| 6 | 07 14 9 157 161 | PLUG-IN CONNECTION BRACKET | - | |
| 7 | 51 12 7 070 202 | C-CLIP NUT - M6-ZNS3 | - | |
| 8 | 07 11 9 904 446 | WASHER - 5-200 HV-ZNNIV | - | |
| 9 | 07 11 9 905 729 | HEX NUT - M5-8-ZNNIV SI | - | |
| 10 | 46 53 2 335 617 | STOPPER | - |
