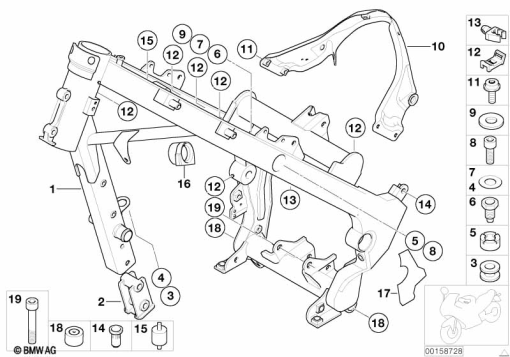

Parts List (23)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 51 2 345 840 | FRAME - SILVER (to 08/01) | - | |
46 51 7 691 333 | MAIN FRAMEAlternative for position 1 | - | ||
46 51 8 521 843 | MAIN FRAMEAlternative for position 1 | - | ||
| 2 | 46 51 7 650 968 | BLIND PLUG | - | |
| 3 | 46 63 1 451 277 | RUBBER GROMMET | - | |
| 4 | 46 63 1 451 278 | INSERT | - | |
| 5 | 46 51 7 652 156 | COUNTER NUT | - | |
| 6 | 46 51 7 652 158 | SLEEVE | - | |
| 7 | 46 51 7 652 153 | REINFORCEMENT - 12X31MM | - | |
| 8 | 07 11 9 906 313 | FILLISTER-HEAD SCREW | - | |
07 12 9 907 092 | ISA SCREW - M10X55Alternative for position 8 | - | ||
| 9 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV | - | |
| 10 | 52 53 7 654 796 | FRAME SECTION TOP - US | - | |
| 11 | 07 12 9 903 375 | SCREW - M6X20-Z2-8.8 | - | |
| 12 | 61 13 7 651 632 | HOLDER FOR CABLE TIE - NATUR | - | |
61 13 7 660 211 | CABLE STRAP BRACKET - BLACKAlternative for position 12 | - | ||
| 13 | 34 32 7 654 660 | BRACKET BRAKE PIPE RIGHT | - | |
| 14 | 46 51 2 331 720 | RIVETED NUT - M6 | - | |
| 15 | 61 21 2 305 050 | RUBBER MOUNTING | - | |
| 16 | 16 11 2 350 066 | DISTANCE RUBBER | - | |
| 17 | 46 51 7 660 858 | RIGHT PROTECTION FOIL | - | |
46 51 7 660 859 | LEFT PROTECTION FOILAlternative for position 17 | - | ||
| 19 | 07 11 9 906 725 | FILLISTER-HEAD SCREW - M10X95-8.8 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
