F650GS 01-04 (R13) | Frame, Fairing, Cases

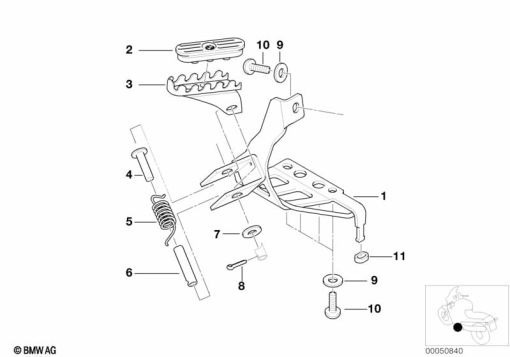

FOOTPEG PLATE/FRONT FOOTPEG
Diagram #46_0612 | 14 parts | 2 available in shop
100%
Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 71 7 650 293 | FOOTREST PLATE, LEFT - FRONT (to 08/01) | 1 | |
| 1 | 46 71 7 650 294 | FOOTPEG PLATE RIGHT - FRONT | 1 | |
| 1 | 46 71 7 668 619 | LEFT FOOTREST PLATE WITHOUT STOP - FRONT (from 08/01) | 1 | |
| 2 | 46 71 1 242 109 | FOOTREST RUBBER | 1 | |
| 3 | 46 71 7 654 663 | FOOTREST, LEFT - L=105MM | 1 | |
| 3 | 46 71 7 654 664 | FOOTREST, RIGHT - L=105 | 1 | |
| 4 | 07 11 9 902 186 | 0.04 | 1 | |
| 5 | 46 71 1 242 020 | SPRING | 1 | |
| 6 | 46 71 1 242 019 | SPACER TUBE | 1 | |
| 7 | 07 14 9 180 923 | WASHER - 8,4X18X2MM | 1 | |
| 8 | 07 11 9 905 230 | SPLIT PIN - 2X16 | 1 | |
| 9 | 07 14 9 180 923 | WASHER - 8,4X18X2MM | 1 | |
| 10 | 34 11 7 713 039 | OVAL HEAD SCREW - M8X20MK | 1 | |
| 11 | 46 53 7 650 674 | STOP BUFFER - LEFT (to 08/01) | 1 |
