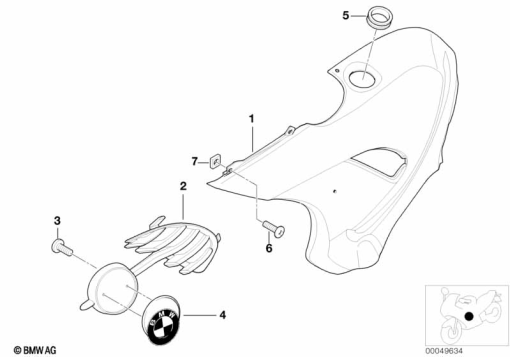

Parts List (24)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 7 652 583 | TRIM PANEL LEFT - RED 2 | - | |
46 63 7 652 584 | TRIM PANEL RIGHT - RED 2Alternative for position 1 | - | ||
46 63 7 652 585 | TRIM PANEL LEFT - MANDARIN 2Alternative for position 1 | - | ||
46 63 7 652 586 | TRIM PANEL RIGHT - MANDARIN 2Alternative for position 1 | - | ||
46 63 7 652 587 | TRIM PANEL LEFT - TITANBLUE 2Alternative for position 1 | - | ||
46 63 7 652 588 | TRIM PANEL RIGHT - TITANBLUE 2Alternative for position 1 | - | ||
46 63 7 652 681 | TRIM PANEL LEFT - TIEFBLACKAlternative for position 1 | - | ||
46 63 7 652 682 | TRIM PANEL RIGHT - TIEFBLACKAlternative for position 1 | - | ||
46 63 7 673 189 | TRIM PANEL LEFT WITH STICKER - YELLOW2/TITANSI.2Alternative for position 1 | - | ||
46 63 7 673 190 | TRIM PANEL RIGHT WITH STICKER - YELLOW2/TITANSI.2Alternative for position 1 | - | ||
46 63 7 673 191 | TRIM PANEL LEFT - YELLOW 2Alternative for position 1 | - | ||
46 63 7 673 192 | TRIM PANEL RIGHT - YELLOW 2Alternative for position 1 | - | ||
46 63 7 673 193 | TRIM PANEL LEFT - TITANSILVER 2Alternative for position 1 | - | ||
46 63 7 673 194 | TRIM PANEL RIGHT - TITANSILVER 2Alternative for position 1 | - | ||
46 63 7 673 195 | TRIM PANEL LEFT - AVUSBLUE 2Alternative for position 1 | - | ||
46 63 7 673 196 | TRIM PANEL RIGHT - AVUSBLUE 2Alternative for position 1 | - | ||
| 2 | 46 63 7 652 671 | GRID WITH PLAQUE SUPPORT, LEFT - GENARBT | - | |
46 63 7 652 672 | GRID WITH PLAQUE SUPPORT, RIGHT - GENARBTAlternative for position 2 | - | ||
| 3 | 07 14 9 141 517 | OVAL-HEAD SCREW WITH WASHER | - | |
| 4 | 51 14 8 164 924 | BADGE - D=58MM | - | |
| 5 | 46 63 7 651 035 | GROMMET - LEFT | - | |
| 6 | 06 32 7 651 212 | BINDING HEAD SCREW - M5X16-A2-80 (to 12/99) | - | |
06 32 7 657 949 | FILLISTER HEAD SCREW - M5X16-A2-80-MKAlternative for position 6 | - | ||
| 7 | 46 63 7 651 465 | PLUG-IN NUT - M5 | - |
