F650GS 01-04 (R13) | Exhaust System

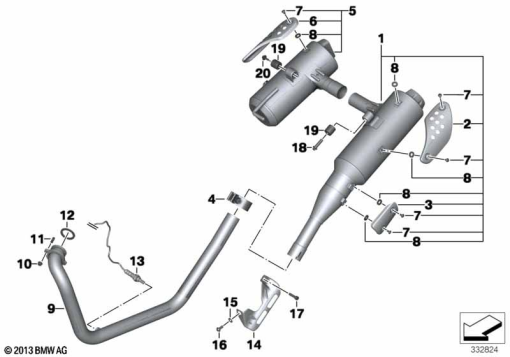

EXHAUST SYSTEM PARTS WITH MOUNTS
Diagram #18_0407 | 20 parts
100%
Parts List (20)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18 12 2 343 581 | CATALYZER/REAR SILENCER | 1 | |
| 2 | 18 12 2 343 583 | COVERING LEFT | 1 | |
| 3 | 18 12 7 650 992 | COVER | 1 | |
| 4 | 18 12 2 345 848 | CIRCLIP END MUFFLER | 1 | |
| 5 | 18 12 2 343 582 | REAR MUFFLER RIGHT | 1 | |
| 6 | 18 12 2 343 584 | COVERING RIGHT | 1 | |
| 7 | 18 12 7 661 721 | FLANGE SCREW - M6X10 | 1 | |
| 8 | 18 11 2 345 072 | INSULATING WASHER | 1 | |
| 9 | 18 11 2 345 851 | EXHAUST MANIFOLD | 1 | |
| 10 | 18 21 1 341 324 | CAP NUT - M8-8-CR | 1 | |
| 11 | 11 12 7 706 516 | STUD BOLT - M8X23/20 | 1 | |
| 12 | 18 11 2 343 587 | EXHAUST SEAL | 1 | |
| 13 | 11 78 7 685 320 | OXYGEN SENSOR - NGK 6 OHM | 1 | |
| 14 | 46 53 7 657 431 | PROTECTIVE COVER | 1 | |
| 15 | 07 14 9 180 923 | WASHER - 8,4X18X2MM | 1 | |
| 16 | 34 11 7 713 039 | OVAL HEAD SCREW - M8X20MK | 1 | |
| 17 | 36 31 7 709 543 | OVAL HEAD SCREW - M8X25-10.9 ZNS3 | 1 | |
| 18 | 07 12 9 905 738 | ASA-BOLT - M10X35 ZNNIV SI | 1 | |
| 19 | 18 21 1 342 283 | RUBBER MOUNTING | 1 | |
| 20 | 07 12 9 903 375 | SCREW - M6X20-Z2-8.8 | 1 |
