Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 71 11 7 650 988 | CAR TOOL - F650GS (to 10/04) | - | |
| 2 | 71 11 1 112 893 | DOUBLE OPEN-END WRENCH - 8X10 | - | |
| 4 | 71 11 2 347 278 | TORX WRENCH - T25 | - | |
| 6 | 52 53 7 650 966 | TORX WRENCH - 40 (to 10/04) | - | |
| 7 | 71 11 7 665 489 | OPEN-ENDED WRENCH - BLACK24 (to 10/04) | - | |
| 8 | 71 11 7 692 709 | TOOL BAG (from 10/04) | - | |
| 9 | 06 32 7 659 019 | DOUBLE OPEN-END WRENCH - 14X19 (to 10/04) | - | |
| 10 | 06 32 7 659 061 | SPARK PLUG WRENCH | - | |
| 11 | 06 32 7 659 020 | SCREWDRIVER F PHILLIPS SCREW | - | |
| 12 | 71 11 1 179 629 | SCREWDRIVER | - | |
| 13 | 52 53 7 650 966 | TORX WRENCH - 40 | - | |
| 14 | 61 13 1 372 524 | FUSE BROWN - 7,5A | - | |
61 13 1 372 526 | FUSE BLUE - 15AAlternative for position 14 | - | ||
61 13 1 372 527 | FUSE MAXI, YELLOW - 20AAlternative for position 14 | - | ||
61 13 6 917 402 | FUSE MINI, BROWN - 7,5AAlternative for position 14 | - | ||
61 13 6 917 404 | FUSE MINI, BLUE - 15AAlternative for position 14 | - |

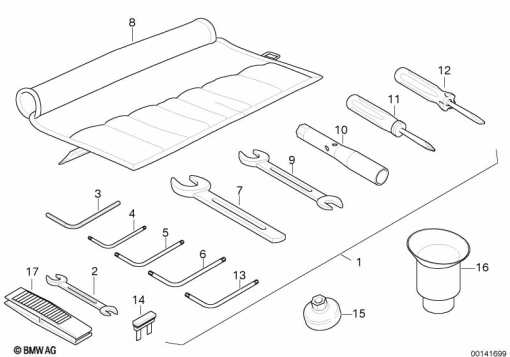

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
