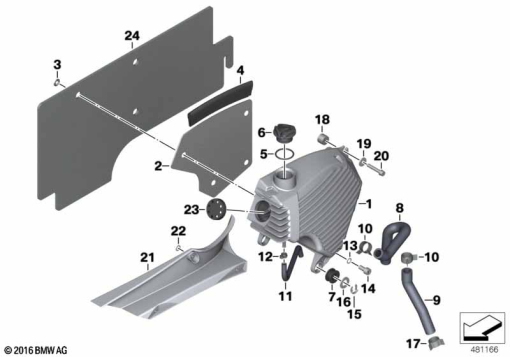

Parts List (27)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 43 7 673 650 | OIL CARRIER | - | |
11 43 7 674 592 | DIPSTICKAlternative for position 1 | - | ||
11 43 8 560 294 | O-RING - 30X2,8Alternative for position 1 | - | ||
| 2 | 11 43 2 345 825 | HEAT RESISTANT PLATE | - | |
| 3 | 11 43 2 345 865 | WAVE WASHER - ZNS | - | |
| 4 | 11 43 7 720 641 | PROFILE-GASKET | - | |
| 5 | 11 43 8 560 294 | O-RING - 30X2,8 | - | |
| 6 | 11 43 2 343 547 | OIL COVER LID | - | |
| 7 | 13 71 2 343 569 | RUBBER GROMMET - 18X8MM | - | |
| 8 | 11 43 7 654 410 | OIL HOSE INLET | - | |
| 9 | 11 43 7 654 412 | OIL RETURN HOSE | - | |
| 10 | 11 43 7 651 942 | MUFFLER CLAMP - D=21/12 | - | |
| 11 | 11 43 2 345 866 | VENT HOSE | - | |
| 12 | 64 12 1 378 285 | HOSE CLAMP - 66/100 | - | |
| 13 | 07 11 9 903 546 | GASKET RING - A8X13X1-AL | - | |
| 14 | 07 11 9 904 101 | FILLISTER-HEAD SCREW - M8X16-8.8-ZNS3 | - | |
| 15 | 07 12 9 906 727 | CLIP - 12-ZNS3 | - | |
| 16 | 11 43 2 343 573 | WASHER | - | |
| 17 | 17 22 1 342 708 | CLAMP - FBS 19/12 | - | |
| 18 | 13 71 7 655 773 | SPACER BUSH | - | |
| 19 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | - | |
07 11 9 936 426 | FLAT WASHERAlternative for position 19 | - | ||
| 20 | 07 12 9 905 538 | ISA SCREW WITH WASHER - M6X35-ZNNIV SI | - | |
| 21 | 46 63 2 350 068 | AIR DUCT, LEFT | - | |
| 22 | 51 41 8 144 600 | CIRCLIP - D=4MM | - | |
| 23 | 11 11 8 523 906 | SET: OIL-LEVEL CHECK | - | |
| 24 | 61 21 8 524 983 | HEAT PROTECTION MAT LARGE | - |
