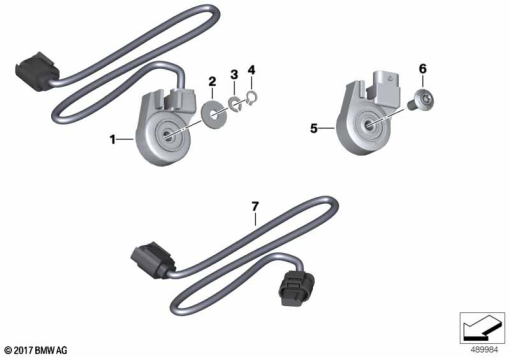

Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 07 11 9 904 427 | WASHER - 6-200 | - | |
| 4 | 07 11 9 903 479 | LOCK RING - 6X0,7 | - | |
| 5 | 61 31 8 388 642 | SWITCH, KICKSTAND | - | |
| - | 61 12 8 523 365 | ADAPTER LEAD - L=530MM | - | |
| - | 07 11 9 903 479 | LOCK RING - 6X0,7 | - | |
| - | 07 11 9 904 427 | WASHER - 6-200 | - | |
| 7 | 61 12 8 523 365 | ADAPTER LEAD - L=530MM | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
