F650GS 01-04 (R13) | Electrical System

PLUG-IN SOCKET

Diagram #61_2446 | 4 parts | 1 available in shop

100%

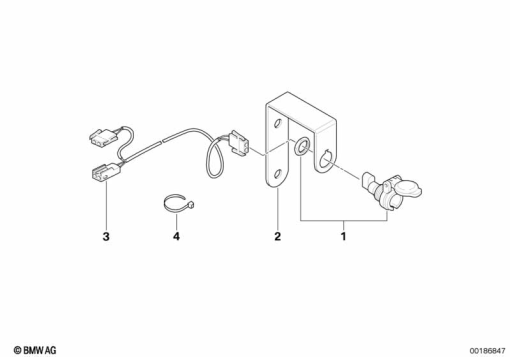

F650GS 01-04 (R13) PLUG-IN SOCKET exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
61 13 1 391 630
PLUG-IN SOCKET1
2
71 60 7 653 873
PLUG SOCKET BRACKET1
3
71 60 7 653 872
WIRING PLUG TERMINAL1
4
61 13 1 367 599
CABLE TIE - L=200MM/B=3,6MM1
