F650GS 01-04 (R13) | Electrical System

CABLE TIE, CABLE TIE WITH BRACKET

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #61_6476 | 5 parts

100%

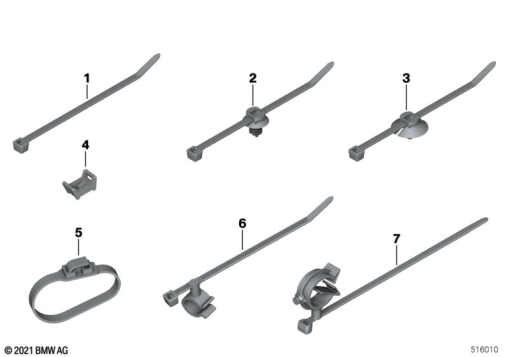

F650GS 01-04 (R13) CABLE TIE, CABLE TIE WITH BRACKET exploded view parts diagram

Parts List (5)

#	Part Number	Description	Qty
1	61 13 1 367 599	CABLE TIE - L=200MM/B=3,6MM	-
	61 13 1 372 391	CABLE TIE - L=100MM/B=2,5MMAlternative for position 1	-
	61 13 1 377 134	CABLE TIE - L=292MM/B=4,8MMAlternative for position 1	-
4	61 13 7 660 211	CABLE STRAP BRACKET - BLACK	-
6	16 13 1 465 119	HOSE CLAMP	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
