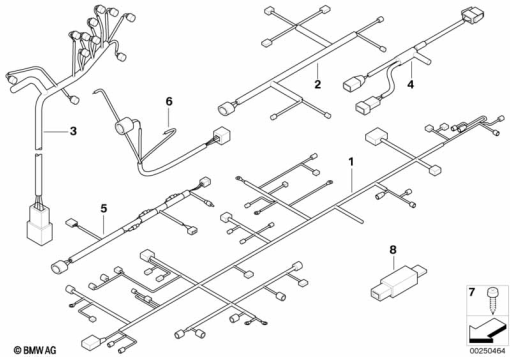

Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 11 2 346 593 | WIRING HARNESS, CHASSIS WITHOUT ABS | - | |
61 11 7 660 361 | WIRING HARNESS,CHASSIS, WITH HEATED GRIP - WITHOUT ABSAlternative for position 1 | - | ||
61 11 7 660 362 | WRNG HARNESS,CHASSIS, ABS, HEAT.GRIPAlternative for position 1 | - | ||
| 2 | 61 11 7 652 030 | TAIL PART WIRING HARNESS | - | |
| 3 | 61 12 7 712 259 | WIRING HARNESS, INSTRUMENT CLUSTER | - | |
| 4 | 61 12 7 653 283 | WIRING HARNESS F HEATED HANDLEBAR GRIPS | - | |
| 7 | 07 12 9 902 608 | SCREW - M6X12 MASSE | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
