F650GS 01-04 (R13) | Electrical System

BATTERY CARRIER/HEAT INSULATION

Diagram #61_1368 | 8 parts

100%

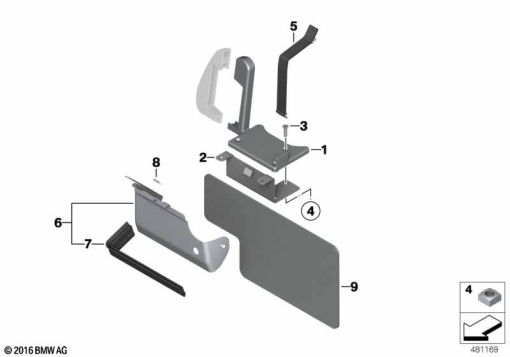

F650GS 01-04 (R13) BATTERY CARRIER/HEAT INSULATION exploded view parts diagram

Parts List (8)

#Part NumberDescriptionQty
1
13 71 2 343 578
BATTERY TRAY-
2
13 71 2 343 567
BATTERY HOLD DOWN-
3
07 11 9 900 892
COUNTERSUNK HEAD SCREW - M6X25-8.8-ZNS-
4
07 12 9 904 896
WELDING NUT - M6-
5
61 21 2 346 549
TENSION STRAP-
6
61 21 7 650 108
HEAT RESISTANT PLATE - BLACK-
7
61 21 7 650 107
GASKET-
9
61 21 8 524 984
HEAT PROTECTION MAT SMALL-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
