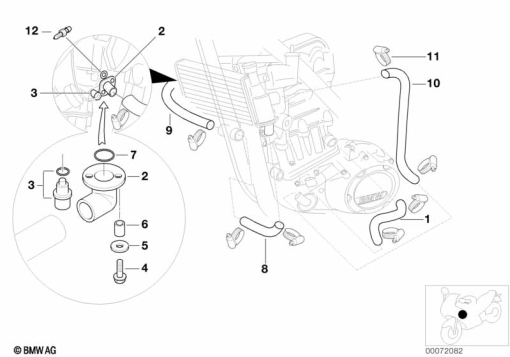

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 51 7 652 875 | WATER HOSE | 1 | |
| 2 | 11 12 7 652 876 | ANGLE CONNECTOR | 1 | |
| 3 | 13 62 1 703 993 | DOUBLE TEMPERATURE SWITCH | 1 | |
| – | 12 52 1 703 593 | PROTECTION CAP - 4-POL | 1 | |
| 4 | 07 12 9 902 329 | ISA SCREW WITH WASHER - M5X16-Z1-ZNS | 1 | |
| 5 | 07 11 9 904 446 | WASHER - 5-200 HV-ZNNIV | 1 | |
| 6 | 11 12 7 652 917 | SPACER SLEEVE, RIGHT - 5,2/7/6,5MM | 1 | |
| 7 | 11 12 7 652 951 | GASKET RING - 21X3,5X1,5MM | 1 | |
| 8 | 17 12 2 345 243 | COOLANT HOSE, LEFT | 1 | |
| 9 | 17 12 2 345 242 | COOLANT HOSE - RIGHT | 1 | |
| 10 | 17 12 2 345 240 | COOLANT HOSE, RETURN | 1 | |
| 11 | 64 21 8 367 179 | HOSE CLAMP - L16-30 | 1 | |
| 12 | 11 12 7 728 618 | VENT SCREW - M10X1-ZNNIV SI | 1 |
