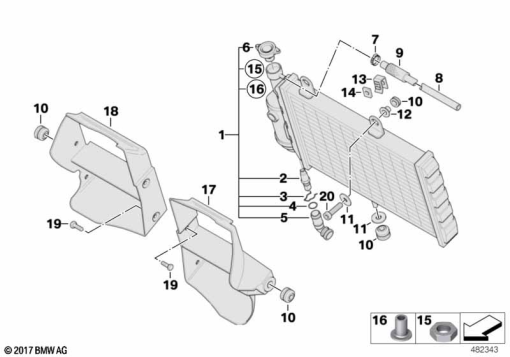

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17 11 7 652 234 | RADIATOR | 1 | |
| 2 | 17 11 1 464 985 | THERMOSTAT | 1 | |
| 3 | 17 11 1 464 991 | FIXING CLAMP | 1 | |
| 4 | 17 11 1 464 984 | O-RING - 36X4 | 1 | |
| 5 | 17 11 7 661 905 | COVER | 1 | |
| 6 | 17 11 7 105 799 | COVER LID | 1 | |
| 7 | 17 11 7 659 618 | CLAMP - NW=14MM | 1 | |
| 8 | 17 11 2 343 590 | VENTILATION HOSE | 1 | |
| 9 | 13 53 7 654 598 | PROTECTIVE HOSE | 1 | |
| 10 | 46 63 1 451 277 | RUBBER GROMMET | 1 | |
| 11 | 46 63 1 451 278 | INSERT | 1 | |
| 12 | 46 63 1 451 275 | BUSH - 25X6.4X10-ZNS3 | 1 | |
| 13 | 46 63 1 455 425 | NUT HOLDER | 1 | |
| 14 | 07 12 9 901 419 | CAGE NUT - M6-6-ZNS | 1 | |
| 15 | 17 11 7 654 950 | NUT - M6 | 1 | |
| 16 | 17 11 7 654 406 | BUSH | 1 | |
| 17 | 17 11 2 343 553 | AIR DUCT, LEFT | 1 | |
| 18 | 17 11 2 343 554 | AIR DUCT, RIGHT | 1 | |
| 19 | 07 12 9 902 771 | FILLISTER-HEAD SCREW - M6X16-Z2 | 1 |
