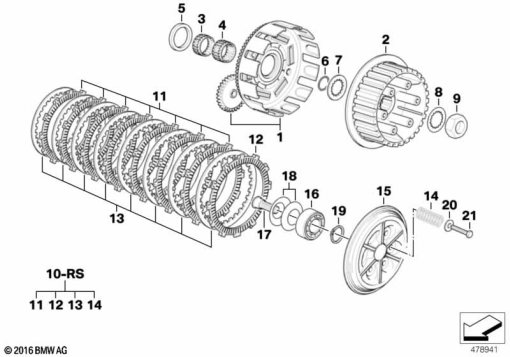

Parts List (22)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 21 21 7 707 553 | COUPLNG CAP | 1 | |
| 2 | 21 21 7 652 956 | DRIVING DOG | 1 | |
| 3 | 21 21 2 343 165 | NEEDLE CAGE - 25X29X13 | 1 | |
| 4 | 21 21 2 343 166 | NEEDLE CAGE - 25X29X17 | 1 | |
| 5 | 21 21 2 343 164 | SUPPORT - 25X35X2 | 1 | |
| 6 | 11 14 2 343 241 | O-RING - 17X1,5 | 1 | |
| 7 | 21 21 2 343 167 | STOP DISK - 20X38X3 | 1 | |
| 8 | 21 21 2 343 169 | SECURING PLATE | 1 | |
| 9 | 21 21 2 343 503 | HEX NUT - M18X1,5 | 1 | |
| 10 | 21 21 7 652 984 | SET: SET OF CLUTCH DISKS / CLUTCH SPRINGS | 1 | |
| 11 | 21 21 2 343 171 | CLUTCH DISC | 1 | |
| 12 | 21 21 7 652 958 | CLUTCH DISC - D=3,5MM | 1 | |
| 13 | 21 21 2 343 170 | INNER DISC - 1,5MM | 1 | |
| 14 | 21 21 7 685 615 | CLUTCH SPRING - 17,5X2,6X43MM | 1 | |
| 15 | 21 21 2 343 172 | PLATE | 1 | |
| 16 | 21 21 2 343 173 | GROOVED BALL BEARING - 15X32X9 | 1 | |
| 17 | 21 21 7 685 374 | RELEASE BEARING | 1 | |
| 18 | 21 21 2 343 176 | DIAPHRAGM SPRING | 1 | |
| 19 | 07 11 9 902 398 | LOCK RING - 14X1 | 1 | |
| 20 | 21 21 2 343 257 | WASHER - B6,5 | 1 | |
| 21 | 07 11 9 913 589 | HEX BOLT - M6X25 | 1 | |
| 21 | 21 21 7 706 614 | TORX BOLT - M6X25-8.8 | 1 |
