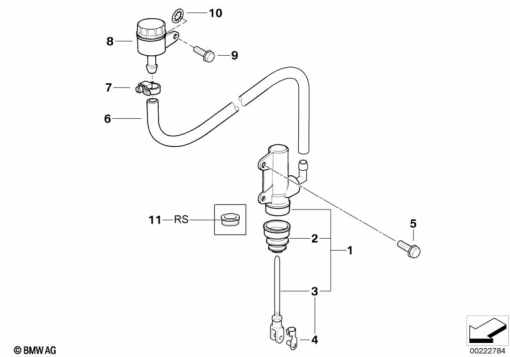

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 31 2 345 748 | REAR BRAKE MASTER CYLINDER - D=11MM | - | |
| 2 | 34 31 2 314 289 | RUBBER BOOT | - | |
| 3 | 34 21 7 655 205 | 0.07 | - | |
| 4 | 07 12 9 934 961 | PIN - 6X12 | - | |
| 5 | 07 11 9 903 040 | FILLISTER-HEAD SCREW - M6X20-ZNNIV SI | - | |
| 6 | 34 32 2 314 742 | HOSE, BULK - 6X10 (meter) | - | |
| 7 | 17 11 1 460 922 | HOSE CLAMP - D=12,3MM | - | |
| 8 | 34 21 2 345 313 | FLUID CONTAINER | - | |
| 10 | 07 11 9 936 133 | TOOTH WASHER - A6,4 | - | |
| 11 | 34 31 7 655 480 | SET: REPAIR KIT PISTON | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
