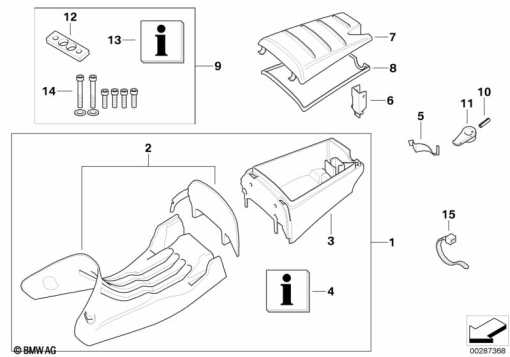

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 71 60 7 653 837 | SET: RETROFIT SINGLE SEAT WITH LUGGAGE BIN | 1 | |
| 1 | 51 25 2 313 285 | LOCK (WITH KEY CODE) | 1 | |
| 2 | 71 60 7 653 838 | SINGLE SEAT - 800MM | 1 | |
| 3 | 71 60 7 653 839 | LUGGAGE BIN | 1 | |
| 4 | 71 60 7 657 161 | INSTALLING, SINGLE SEAT WITH LUGGAGE BIN - F650GS | 1 | |
| 5 | 71 60 7 667 945 | FUEL FILLER CAP COVER | 1 | |
| 6 | 71 60 7 664 994 | PUSH BUTTON | 1 | |
| 7 | 71 60 7 664 993 | COVER | 1 | |
| 8 | 71 60 7 667 947 | GASKET | 1 | |
| 9 | 71 60 7 688 805 | SET: INSTALLATION KIT, BUCKET SEAT | 1 | |
| 10 | 07 11 9 941 417 | ROLL PIN - 2,5X18 | 1 | |
| 11 | 46 63 2 313 938 | CATCH | 1 | |
| 12 | 71 60 7 688 806 | MOUNTING PLATE FOR BUCKET SEAT | 1 | |
| 13 | 01 29 7 688 807 | INSTALLATION GUIDE, SINGLE SEAT | 1 | |
| 14 | 71 60 7 667 946 | SET: OF SCREWS - EINZELSITZ | 1 |
