F650GS 01-04 (R13) | Accessories
RETROFIT KIT, SOCKET

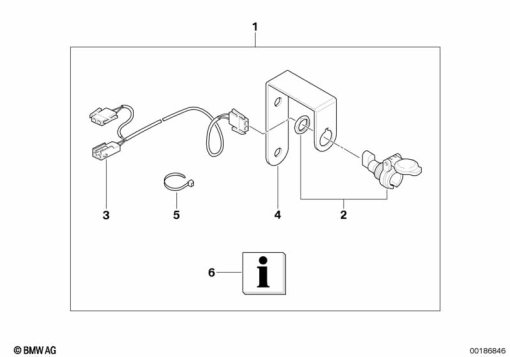

Diagram #77_1287 | 6 parts | 1 available in shop
100%
Parts List (6)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 71 60 7 653 870 | SET: RETROFIT KIT, SOCKET | 1 | |
| 2 | 61 13 1 391 630 | PLUG-IN SOCKET | 1 | |
| 3 | 71 60 7 653 872 | WIRING PLUG TERMINAL | 1 | |
| 4 | 71 60 7 653 873 | PLUG SOCKET BRACKET | 1 | |
| 5 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | 1 | |
| 6 | 71 60 7 657 167 | INSTALL.INSTRUCTIONS, PLUG-IN SOCKET | 1 |
