F650GS 01-04 (R13) | Accessories

RETROFIT KIT, ON-BOARD COMPUTER

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #77_0238 | 8 parts

100%

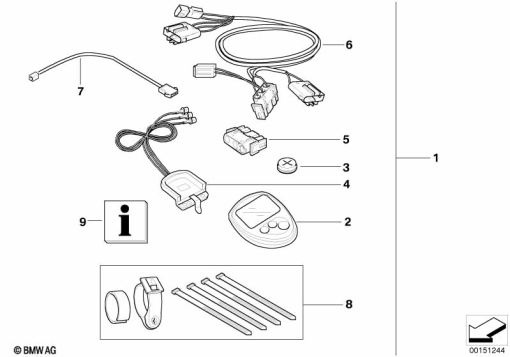

F650GS 01-04 (R13) RETROFIT KIT, ON-BOARD COMPUTER exploded view parts diagram

Parts List (8)

#	Part Number	Description	Qty
1	71 60 7 659 143	SET: RETROFIT KIT, ON-BOARD COMPUTER	-
2	71 60 7 653 862	ON-BOARD COMPUTER	-
3	71 60 7 657 151	BATTERY - CHROME2032 3V	-
4	71 60 7 653 924	SET: WIRING CAR COMPUTER	-
5	61 13 8 352 304	UNIVERSAL SOCKET HOUSING, UNCODED - 3 POL.	-
6	71 60 7 653 863	SET: WIRING HARNESS, ADAPTER	-
8	71 60 7 653 865	SET: MOUNTING PARTS SET	-
9	01 29 7 657 158	INSTALL.INSTRUCTIONS, ON-BOARD COMPUTER - F650GS	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
