F650GS 01-04 (R13) | Accessories
HEATED HANDLEBAR GRIPS

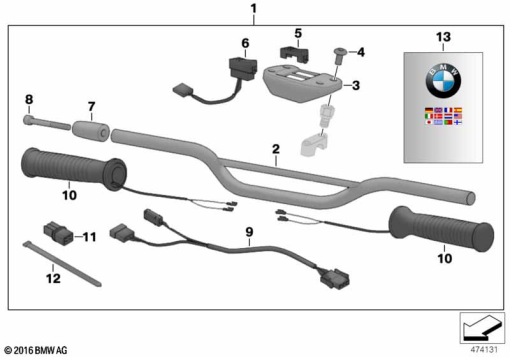

Diagram #77_0079 | 13 parts | 1 available in shop
100%
Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 71 60 7 659 145 | SET: RETRO.KIT, HEATED GRIP WITH HANDLEBAR | 1 | |
| 2 | 32 71 7 650 241 | HEATED HANDLE AT HANDLE-BAR | 1 | |
| 3 | 46 63 7 652 163 | SWITCH SUPPORT | 1 | |
| 4 | 46 63 7 652 160 | OVAL-HEAD SCREW BLACK - M5X8 | 1 | |
| 5 | 32 71 1 459 318 | COVERING CAP | 1 | |
| 6 | 71 60 7 653 282 | SWITCH HANDLE HEATED | 1 | |
| 7 | 32 71 2 346 586 | HANDLEBAR VIBRATION ABSORBER | 1 | |
| 8 | 46 63 2 313 663 | FILLISTER-HEAD SCREW - M6X55 | 1 | |
| 9 | 61 12 7 653 283 | WIRING HARNESS F HEATED HANDLEBAR GRIPS | 1 | |
| 10 | 61 31 7 653 173 | HEATED HANDLE, LEFT | 1 | |
| 10 | 61 31 7 653 174 | HEATED HANDLE, RIGHT | 1 | |
| 11 | 61 13 1 361 706 | PLUG HOUSING - 4-POLIG | 1 | |
| 12 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | 1 |
